Conveyor Length
1000 ≤ L ≤ 20000 mm
Flexible Chain Conveyor
- 1000 ≤ L ≤ 20000 mm
- W=44/63/83/103mm
- 120 kg (W=103 mm)
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Basic Conveyor System

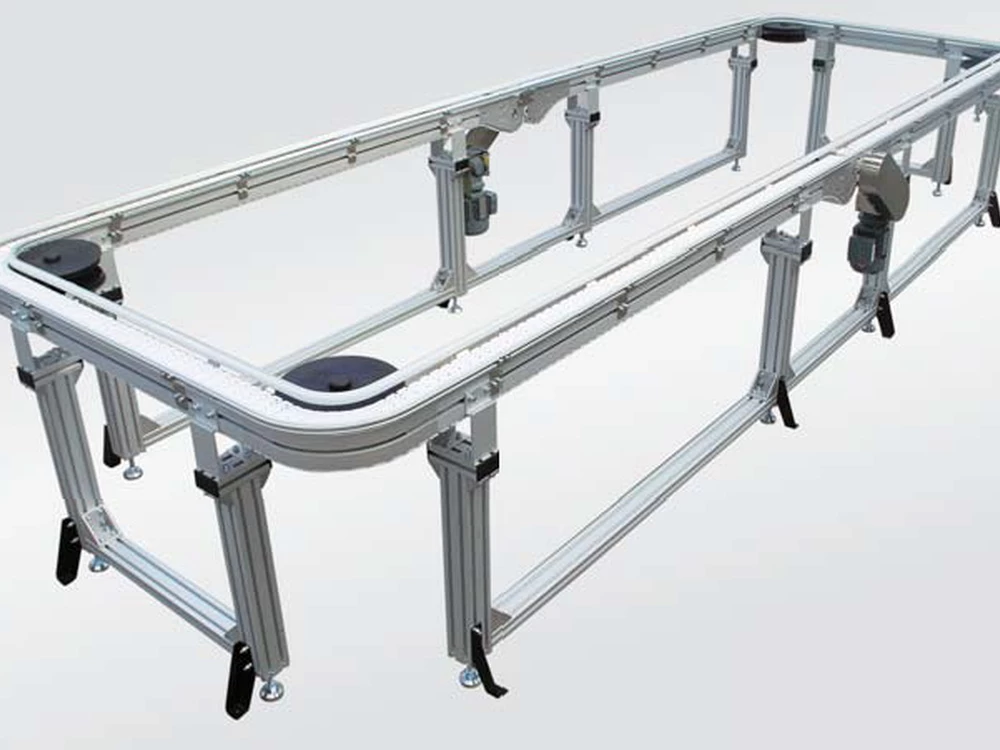

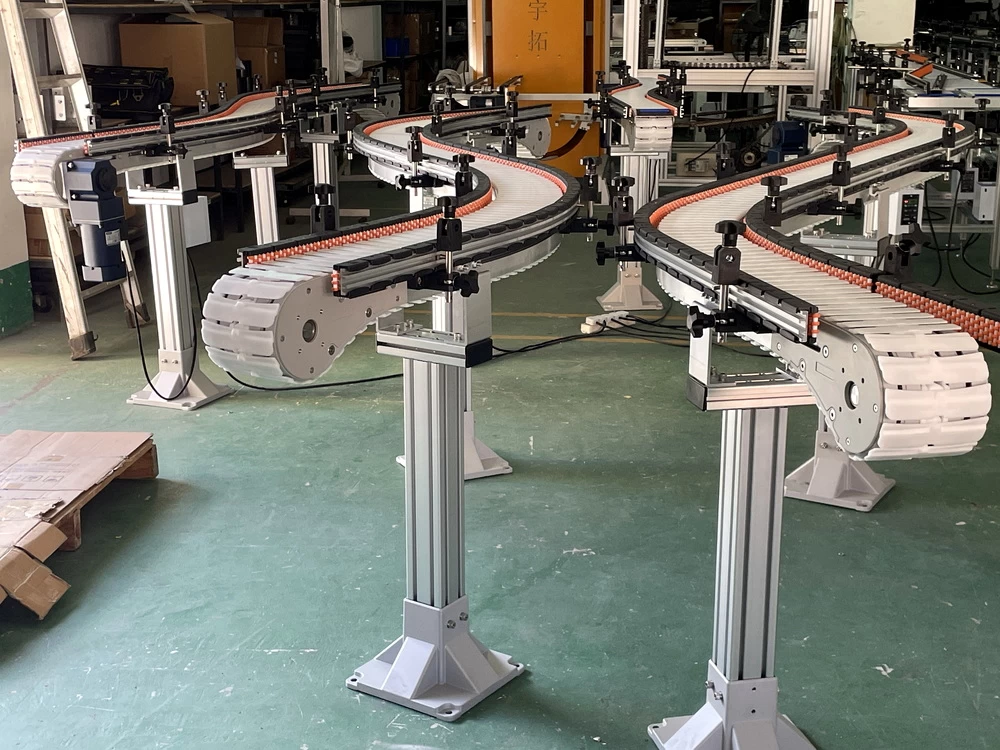

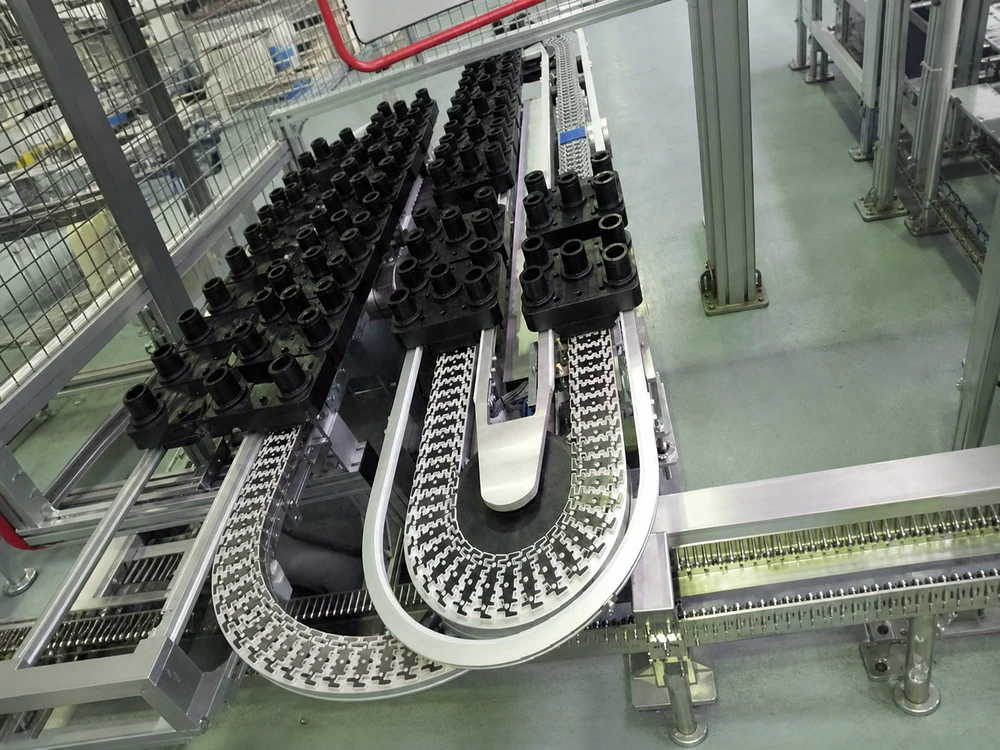

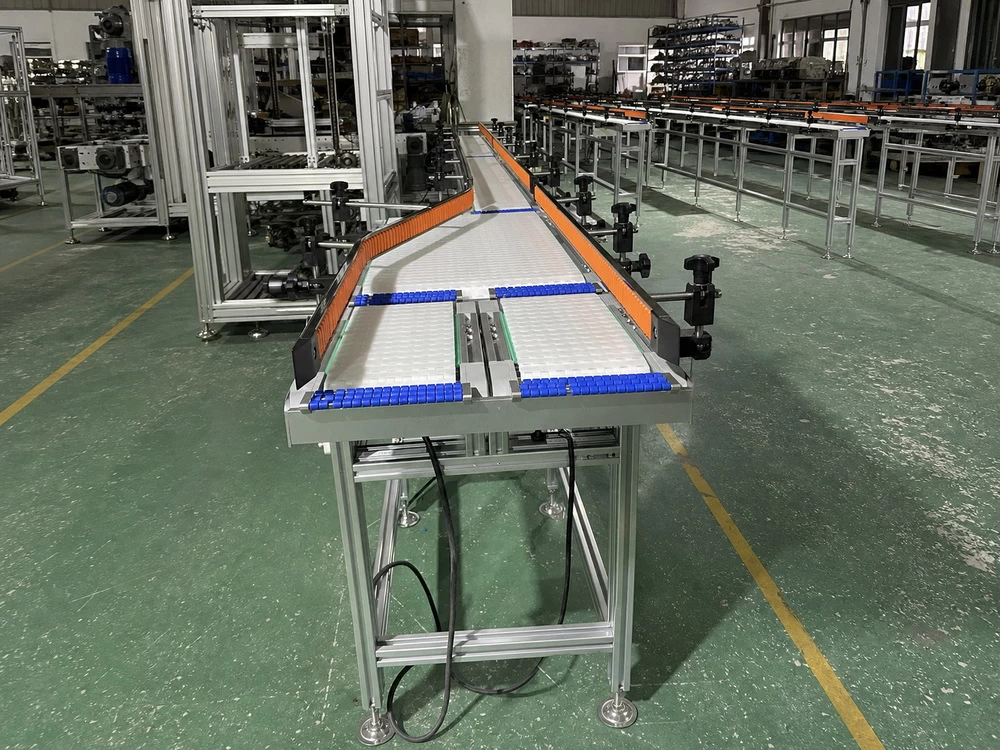

Flexible Chain Conveyor
Flexible chain plate conveyor adopts intelligent motion control system and modular design. It can automatically adjust conveying speed and routes according to production requirements, supporting flexible switching of multiple workstations and continuous high-load operation. Its high-strength flexible chain plate structure adapts to complex production environments. Combined with real-time monitoring sensors and visual operation interface, it realizes precise positioning and full-tracking of operating status, significantly improving material conveying efficiency and system stability. The Flexible Chain Conveyor can be configured around the confirmed product size, payload, line height and operating cycle.
Product Overview
Flexible chain plate conveyor adopts intelligent motion control system and modular design. It can automatically adjust conveying speed and routes according to production requirements, supporting flexible switching of multiple workstations and continuous high-load operation. Its high-strength flexible chain plate structure adapts to complex production environments. Combined with real-time monitoring sensors and visual operation interface, it realizes precise positioning and full-tracking of operating status, significantly improving material conveying efficiency and system stability. The Flexible Chain Conveyor can be configured around the confirmed product size, payload, line height and operating cycle.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Chian Width
W=44/63/83/103mm
Max. Load Capacity
120 kg (W=103 mm)
Conveyor Speed
2 ≤V ≤ 20 m/min
Drive Model
Direct
Chain Material
POM
Applications
- ✓Factory material transfer
- ✓Warehouse and logistics handling
- ✓Packaging and sorting lines
- ✓Assembly-line connection
- ✓Inspection and weighing stations
- ✓Customized production cells
Complete Technical Details
All 6 unique parameters supplied for this product are listed below.
| Conveyor Length | 1000 ≤ L ≤ 20000 mm |
|---|---|
| Chian Width | W=44/63/83/103mm |
| Max. Load Capacity | 120 kg (W=103 mm) |
| Conveyor Speed | 2 ≤V ≤ 20 m/min |
| Drive Model | Direct |
| Chain Material | POM |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the Flexible Chain Conveyor designed for?
It is intended for basic conveyor system projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Conveyor Length：1000 ≤ L ≤ 20000 mm; Chian Width：W=44/63/83/103mm. Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
Explore More Conveyor Solutions
Browse the Basic Conveyor System collection or view all conveyor products. Learn more about our manufacturing approach on the About Us page.
Need a Conveyor Solution for Your Line?
Share your layout, load, speed and process requirements with our team.
