Conveyor Length
1200 ≤ L ≤ 3000 mm
Belt Conveyor Checkweigher
- 1200 ≤ L ≤ 3000 mm
- 100 ≤ W ≤ 1200 mm
- Customer Specified
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Basic Conveyor System

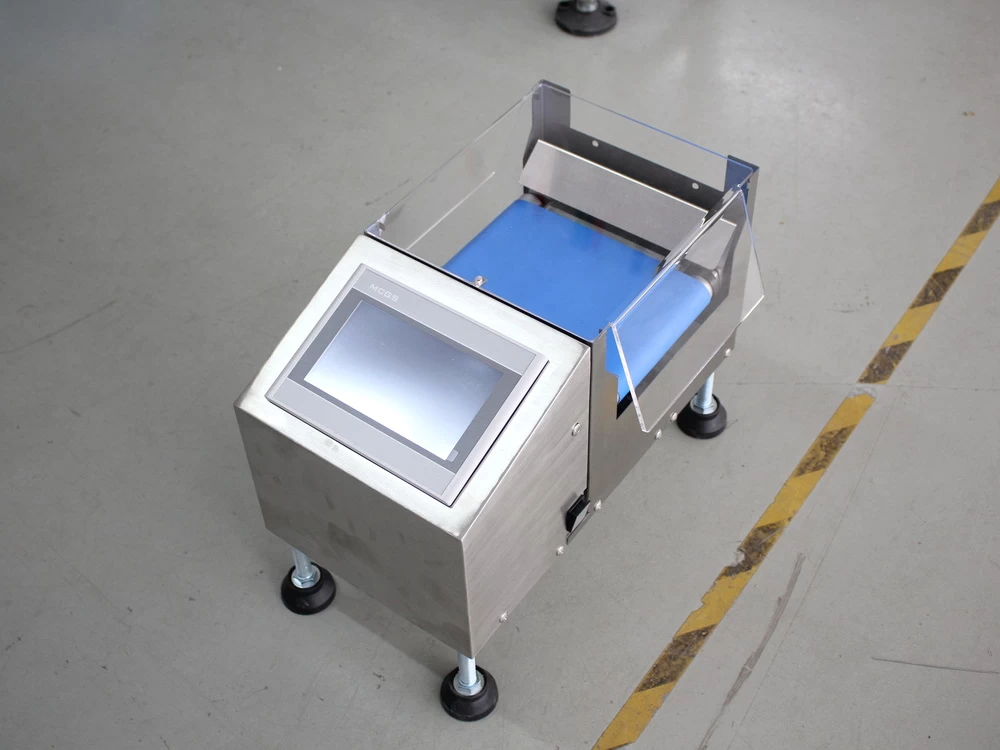

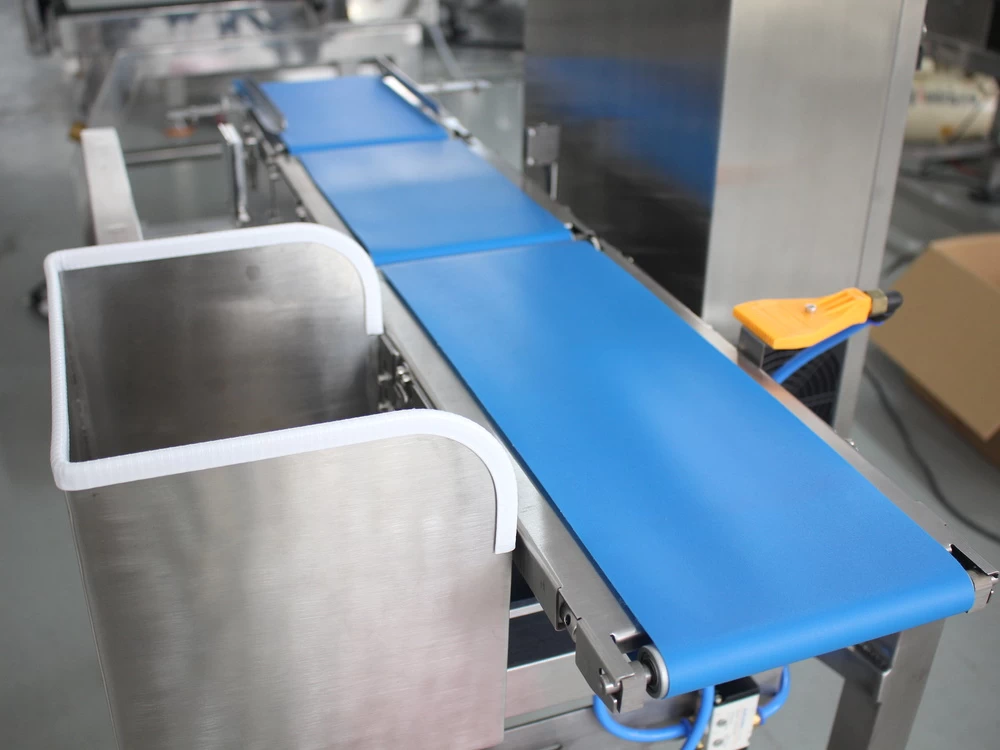

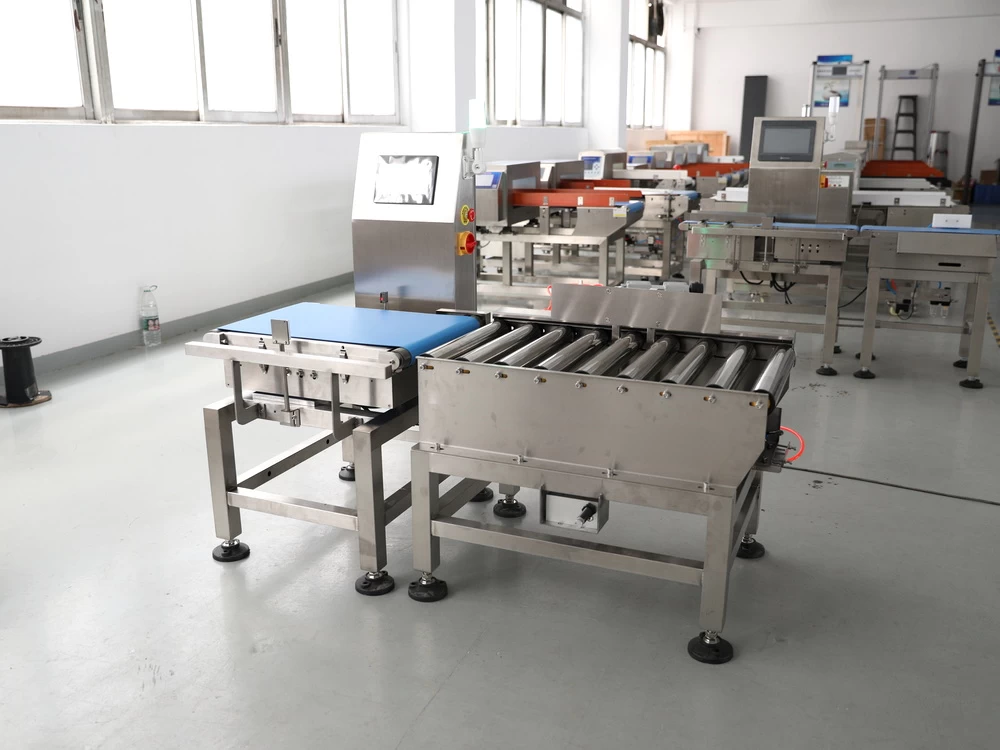

Belt Conveyor Checkweigher
Belt conveyor checkweigher integrates conveying and dynamic weighing functions, equipped with high-precision weighing sensors and variable frequency speed regulation system. It is widely applied for online weight detection of finished products in food packaging, electronics assembly, new energy lithium battery, express logistics, daily chemical and other production line scenarios. The whole machine frame adopts sturdy stainless steel or carbon steel plastic-sprayed structure, matched with anti-static/food-grade PU belt, featuring stable weighing accuracy, low noise and strong anti-interference performance. It supports seamless docking with front and rear automated conveying lines, with flexible customizable layout for horizontal, small-incline conveying demands. The touch screen control system realizes automatic weighing, data storage, unqualified product rejection and real-time data uploading. With compact and simple structure, it.
Product Overview
Belt conveyor checkweigher integrates conveying and dynamic weighing functions, equipped with high-precision weighing sensors and variable frequency speed regulation system. It is widely applied for online weight detection of finished products in food packaging, electronics assembly, new energy lithium battery, express logistics, daily chemical and other production line scenarios. The whole machine frame adopts sturdy stainless steel or carbon steel plastic-sprayed structure, matched with anti-static/food-grade PU belt, featuring stable weighing accuracy, low noise and strong anti-interference performance. It supports seamless docking with front and rear automated conveying lines, with flexible customizable layout for horizontal, small-incline conveying demands. The touch screen control system realizes automatic weighing, data storage, unqualified product rejection and real-time data uploading. With compact and simple structure, it.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Belt Width
100 ≤ W ≤ 1200 mm
Conveyor Height
Customer Specified
Max. Single Item Weighing Range
5g ~ 50kg
Weighing Accuracy
±0.2g ~ ±5g (Depends on weighing range)
Belt Running Speed
10~30 m/min, variable frequency adjustable
Applications
- ✓Factory material transfer
- ✓Warehouse and logistics handling
- ✓Packaging and sorting lines
- ✓Assembly-line connection
- ✓Inspection and weighing stations
- ✓Customized production cells
Complete Technical Details
All 8 unique parameters supplied for this product are listed below.
| Conveyor Length | 1200 ≤ L ≤ 3000 mm |
|---|---|
| Belt Width | 100 ≤ W ≤ 1200 mm |
| Conveyor Height | Customer Specified |
| Max. Single Item Weighing Range | 5g ~ 50kg |
| Weighing Accuracy | ±0.2g ~ ±5g (Depends on weighing range) |
| Belt Running Speed | 10~30 m/min, variable frequency adjustable |
| Belt Material | Food-grade PU / Anti-static PU / Rubber (RU) |
| Frame Material | 304 Stainless Steel (SS) / Q235 Carbon Steel with plastic spraying (CS) |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the Belt Conveyor Checkweigher designed for?
It is intended for basic conveyor system projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Conveyor Length：1200 ≤ L ≤ 3000 mm; Belt Width：100 ≤ W ≤ 1200 mm. Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
Explore More Conveyor Solutions
Browse the Basic Conveyor System collection or view all conveyor products. Learn more about our manufacturing approach on the About Us page.
Need a Conveyor Solution for Your Line?
Share your layout, load, speed and process requirements with our team.
