Conveyor Length
190≤ L ≤2000 mm
PCS1/MS Timing Belt Pallet Conveyor
- 190≤ L ≤2000 mm
- 160 ≤ BWT ≤ 640 mm
- Customer Specified
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Pallet Conveying System

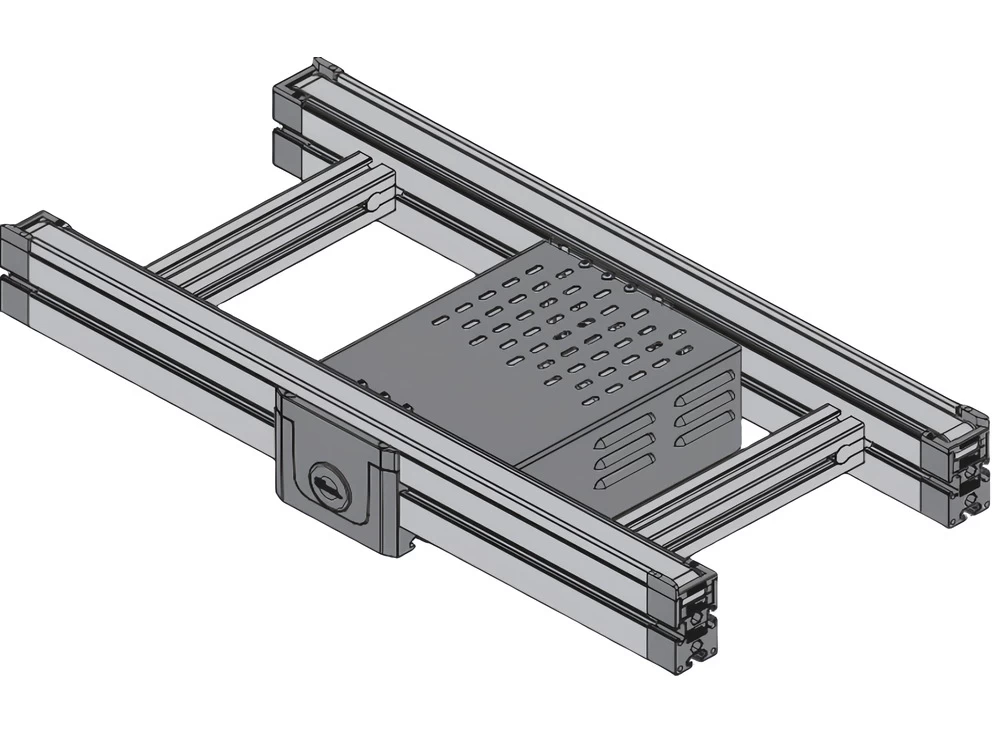

PCS1/MS Timing Belt Pallet Conveyor
The PCS1/MS timing belt pallet conveyor is engineered for industrial automation scenarios. It integrates modular architecture, high-precision control and multi-equipment coordination capability, delivering efficient and flexible material handling solutions for factory automation, auto parts, electronics manufacturing and other industries. Its core design balances rapid deployment and stable operation to accommodate diverse production requirements. The PCS1/MS Timing Belt Pallet Conveyor can be configured around the confirmed product size, payload, line height and operating cycle. It is intended for pallet conveying system projects that require stable transfer, clear equipment interfaces and practical maintenance access.
Product Overview
The PCS1/MS timing belt pallet conveyor is engineered for industrial automation scenarios. It integrates modular architecture, high-precision control and multi-equipment coordination capability, delivering efficient and flexible material handling solutions for factory automation, auto parts, electronics manufacturing and other industries. Its core design balances rapid deployment and stable operation to accommodate diverse production requirements. The PCS1/MS Timing Belt Pallet Conveyor can be configured around the confirmed product size, payload, line height and operating cycle. It is intended for pallet conveying system projects that require stable transfer, clear equipment interfaces and practical maintenance access.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Pallet Width
160 ≤ BWT ≤ 640 mm
Conveyor Height
Customer Specified

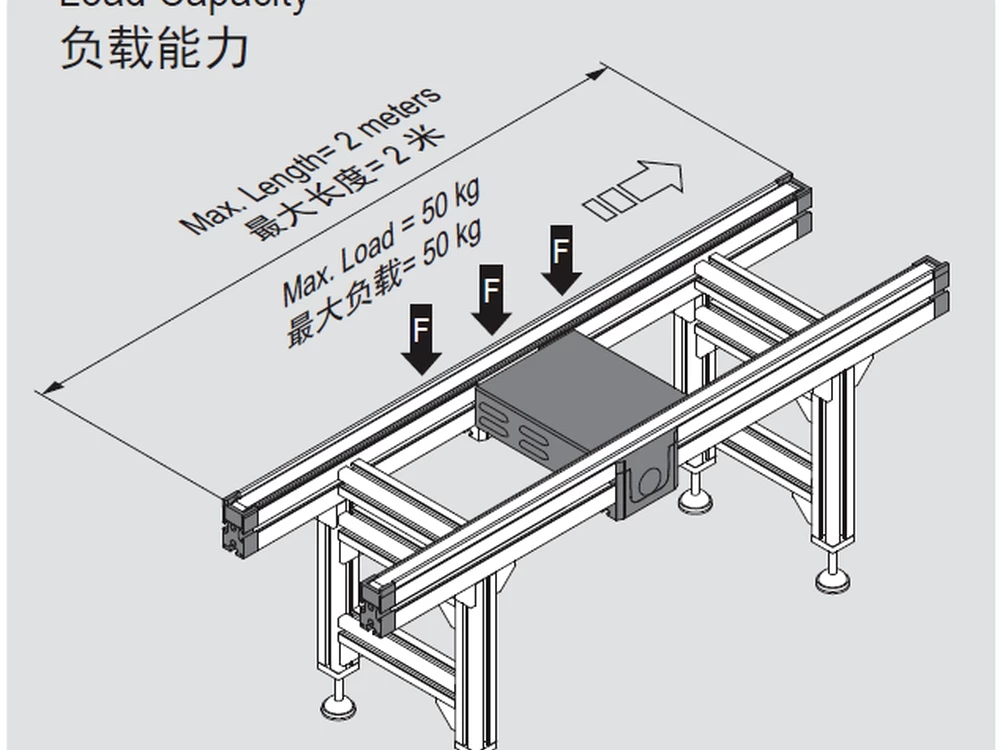

Max. Load Capacity
50 kg
Max. Conveyor Speed
V max.= 20 m/min
Drive Model
Direct/Indirect
Applications
- ✓Automated assembly lines
- ✓Electronics and component production
- ✓Automotive parts handling
- ✓Inspection and test stations
- ✓Buffering and workstation transfer
- ✓Packaging-line integration
Complete Technical Details
All 7 unique parameters supplied for this product are listed below.

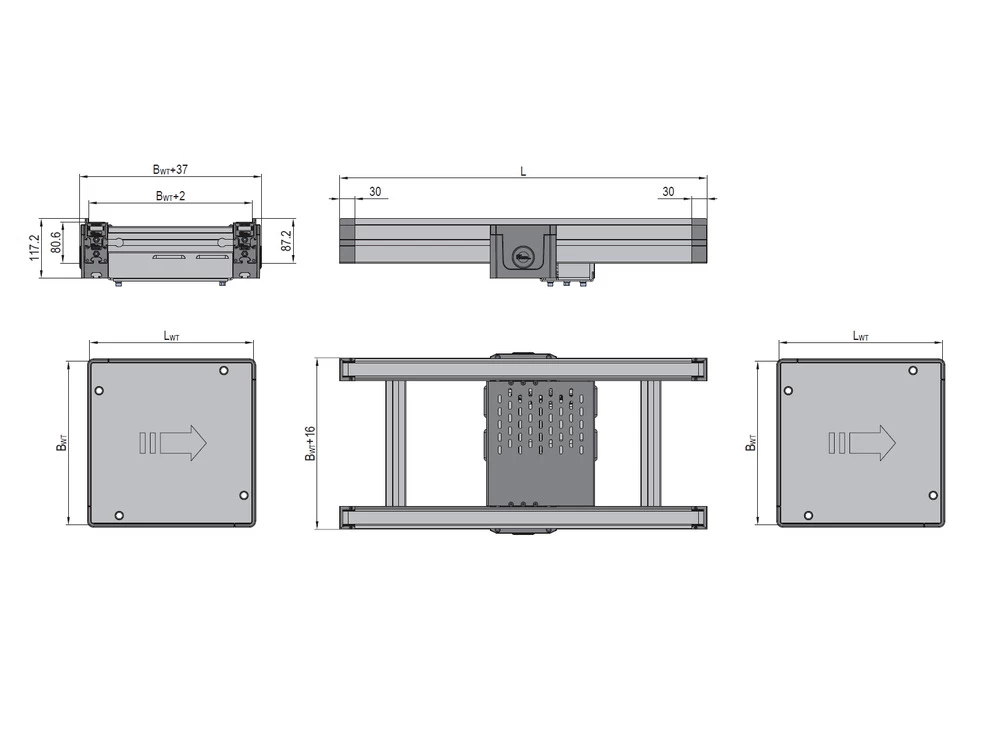

| Conveyor Length | 190≤ L ≤2000 mm |
|---|---|
| Pallet Width | 160 ≤ BWT ≤ 640 mm |
| Conveyor Height | Customer Specified |
| Max. Load Capacity | 50 kg |
| Max. Conveyor Speed | V max.= 20 m/min |
| Drive Model | Direct/Indirect |
| Conveying Medium | Special toothed belt |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the PCS1/MS Timing Belt Pallet Conveyor designed for?
It is intended for pallet conveying system projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Conveyor Length: 190≤ L ≤2000 mm; Pallet Width: 160 ≤ BWT ≤ 640 mm. Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
Explore More Conveyor Solutions
Browse the Pallet Conveying System collection or view all conveyor products. Learn more about our manufacturing approach on the About Us page.
Need a Conveyor Solution for Your Line?
Share your layout, load, speed and process requirements with our team.
