Main Functions
Buffer Stop
ZDTC20-60 Corner Buffered Stopper
- Buffer Stop
- 50-60 (At Conveying Speed 6m/min)
- Single-Acting/Double-Acting
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Conveying Control Device
ZDTC20-60 Corner Buffered Stopper

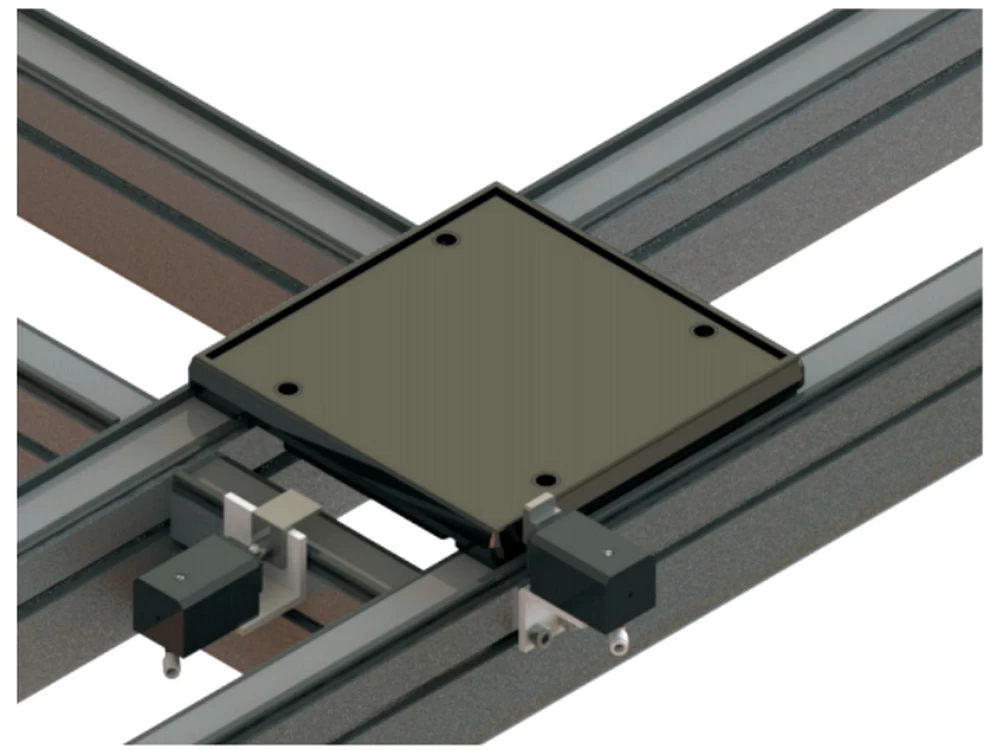

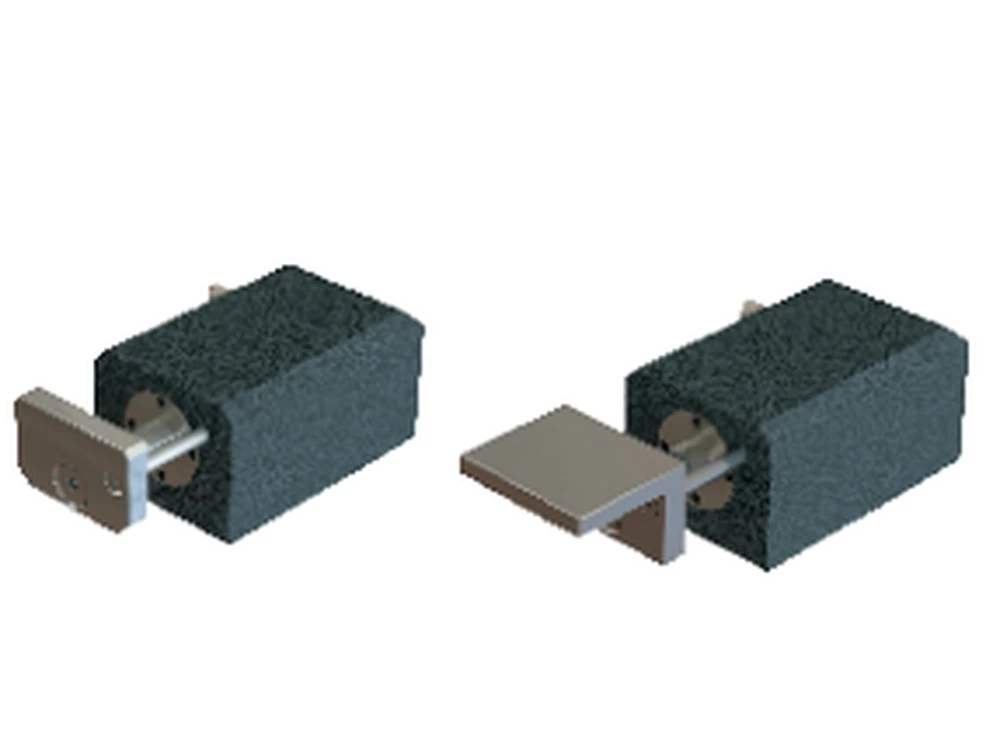

Corner buffer stopper is a shock absorbing device specially designed for conveying systems. It can precisely absorb impact force when pallets move into or out of the main line, ensuring smooth stopping at predetermined positions. Its square housing matches with buffer sliders to prevent rotational deviation, and balances material impact via spring reverse force. Widely applied in logistics automation, rail transit, industrial equipment and other fields, it extends equipment service life and improves operation stability. The ZDTC20-60 Corner Buffered Stopper can be configured around the confirmed product size, payload, line height and operating cycle.
Product Overview
Corner buffer stopper is a shock absorbing device specially designed for conveying systems. It can precisely absorb impact force when pallets move into or out of the main line, ensuring smooth stopping at predetermined positions. Its square housing matches with buffer sliders to prevent rotational deviation, and balances material impact via spring reverse force. Widely applied in logistics automation, rail transit, industrial equipment and other fields, it extends equipment service life and improves operation stability. The ZDTC20-60 Corner Buffered Stopper can be configured around the confirmed product size, payload, line height and operating cycle.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Load Range (kg)
50-60 (At Conveying Speed 6m/min)
Cylinder Action Type
Single-Acting/Double-Acting
Pneumatic Connector Size
M5
Working Pressure (MPa)
0.5
Cushioning Function
Yes
Applications
- ✓Pallet stopping and release
- ✓Workpiece positioning
- ✓Accumulation conveyor control
- ✓Sensor-based line coordination
- ✓Automated assembly stations
- ✓Material-flow sequencing
Complete Technical Details
All 8 unique parameters supplied for this product are listed below.
| Main Functions | Buffer Stop |
|---|---|
| Load Range (kg) | 50-60 (At Conveying Speed 6m/min) |
| Cylinder Action Type | Single-Acting/Double-Acting |
| Pneumatic Connector Size | M5 |
| Working Pressure (MPa) | 0.5 |
| Cushioning Function | Yes |
| Installation Method | Bottom Installation |
| Lowering Stroke (mm) | Buffer Travel 18 |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the ZDTC20-60 Corner Buffered Stopper designed for?
It is intended for conveying control device projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Main Functions:Buffer Stop; Load Range (kg):50-60 (At Conveying Speed 6m/min). Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
Explore More Conveyor Solutions
Browse the Conveying Control Device collection or view all conveyor products. Learn more about our manufacturing approach on the About Us page.
Need a Conveyor Solution for Your Line?
Share your layout, load, speed and process requirements with our team.
