Main Functions
Buffer stop, achieve accumulation and release.
ZDQC50-260 Buffered Stopper
- Buffer stop, achieve accumulation and release.
- 10~260 (at conveying speed 6m/min)
- Single-acting
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Conveying Control Device

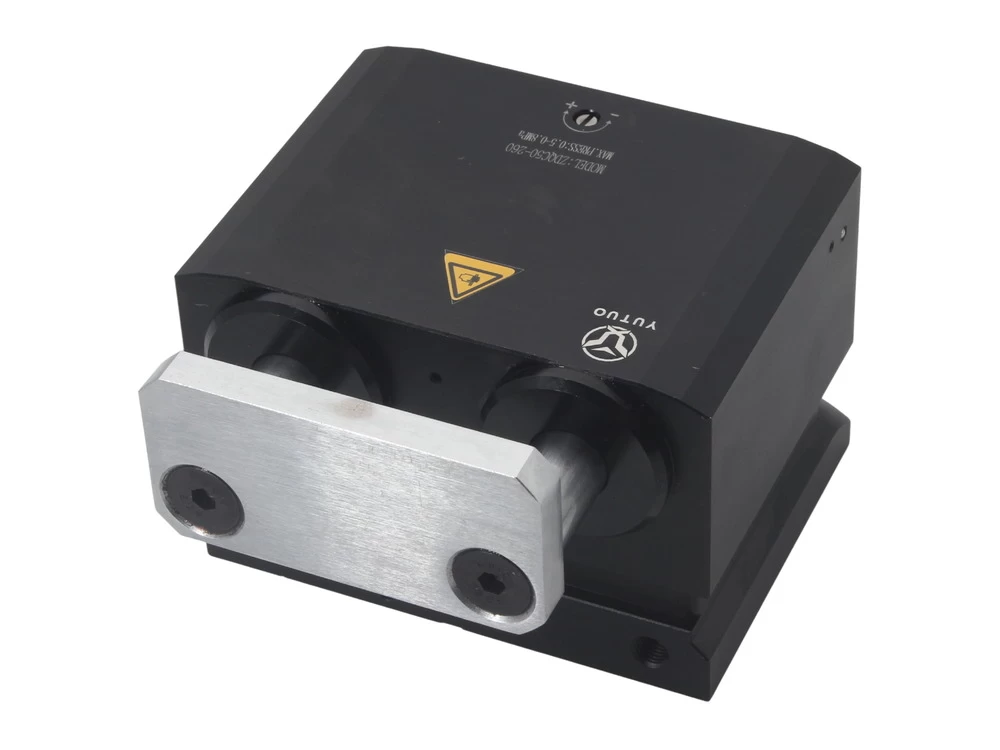

ZDQC50-260 Buffered Stopper

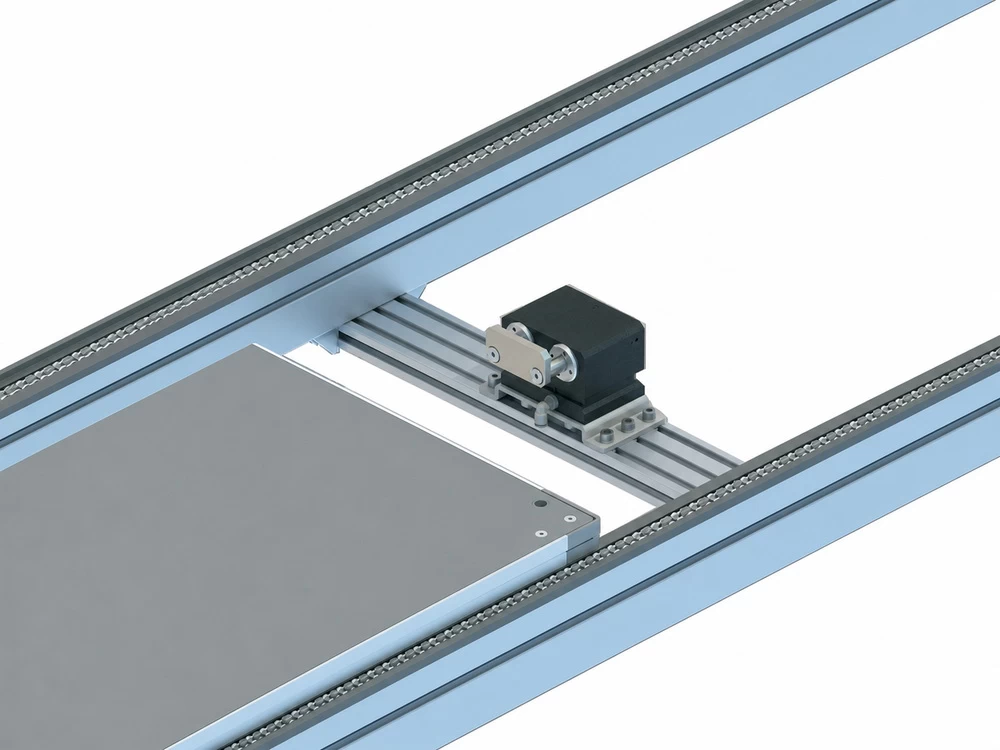

The ZDQC50-260 Buffered Stopper is a cushioned pallet stopper for controlled deceleration, stopping and release in automated conveying lines. Its buffering action helps reduce impact when a moving pallet reaches an accumulation point or processing station. Manufacturer reference details include Main Functions:Buffer stop, achieve accumulation and release.; Load Range (kg):10~260 (at conveying speed 6m/min); Cylinder Action Type:Single-acting; Pneumatic Connector Size:G1/8. The unit can be coordinated with sensors and line controls for sequencing, pallet presence detection and downstream release. Selection depends on pallet load, conveying speed, pneumatic pressure, mounting position and available travel. Final interfaces are configured to match the conveyor structure.
Product Overview
The ZDQC50-260 Buffered Stopper is a cushioned pallet stopper for controlled deceleration, stopping and release in automated conveying lines. Its buffering action helps reduce impact when a moving pallet reaches an accumulation point or processing station. Manufacturer reference details include Main Functions:Buffer stop, achieve accumulation and release.; Load Range (kg):10~260 (at conveying speed 6m/min); Cylinder Action Type:Single-acting; Pneumatic Connector Size:G1/8. The unit can be coordinated with sensors and line controls for sequencing, pallet presence detection and downstream release. Selection depends on pallet load, conveying speed, pneumatic pressure, mounting position and available travel. Final interfaces are configured to match the conveyor structure.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Load Range (kg)
10~260 (at conveying speed 6m/min)
Cylinder Action Type
Single-acting
Pneumatic Connector Size
G1/8
Working Pressure (MPa)
0.5
Cushioning Function
Yes
Applications
- ✓Pallet stopping and release
- ✓Workpiece positioning
- ✓Accumulation conveyor control
- ✓Sensor-based line coordination
- ✓Automated assembly stations
- ✓Material-flow sequencing
Complete Technical Details
All 8 unique parameters supplied for this product are listed below.
| Main Functions | Buffer stop, achieve accumulation and release. |
|---|---|
| Load Range (kg) | 10~260 (at conveying speed 6m/min) |
| Cylinder Action Type | Single-acting |
| Pneumatic Connector Size | G1/8 |
| Working Pressure (MPa) | 0.5 |
| Cushioning Function | Yes |
| Installation Method | Bottom installation |
| Lowering Stroke (mm) | Buffer travel 24，Lowering Stroke 9 |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the ZDQC50-260 Buffered Stopper designed for?
It is intended for conveying control device projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Main Functions:Buffer stop, achieve accumulation and release.; Load Range (kg):10~260 (at conveying speed 6m/min). Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
