WP2 Conveying Pallet

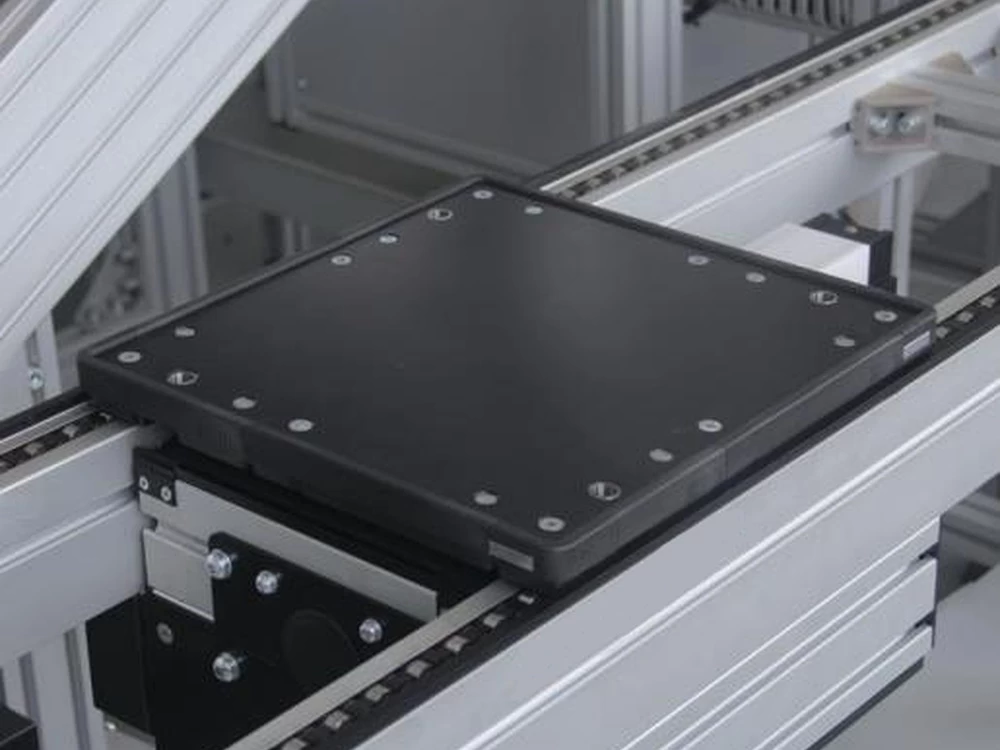

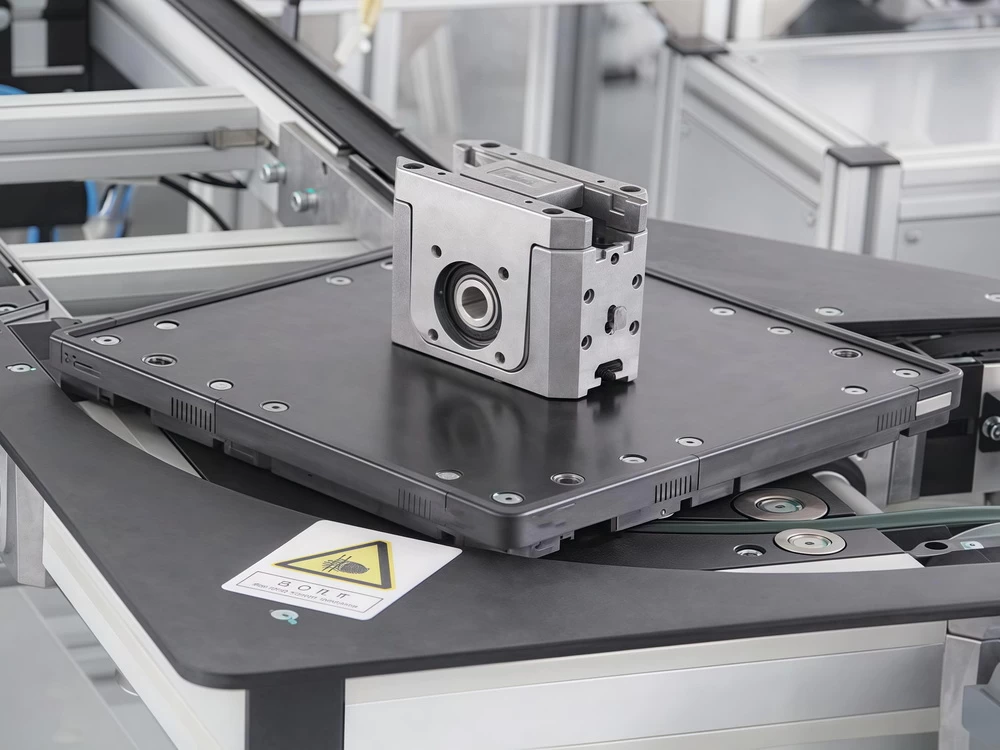

WP2 Pallet
- WP2 Conveying Pallet
- Belt, Toothed Belt, Accumulation Roller Chain
- The pallet can be selected for standard pallet ranging from 160x160mm - 640x640mm or non standard pallet with sizes ranging from 160x160mm - 640x640mm according to request. If necessary, more than one workpiece can be put on one pallet.
Generate QR code
-
Estimated Delivery:Aug 05 - Aug 09
Product description
Pallet Conveying System
WP2 Pallet
The WP2 pallet is engineered for diversified conveying systems and compatible with various conveying media including belt drives, toothed belts, and plastic flat-top chains, widely deployed in industrial automated production lines. Featuring a modular structural design and high-precision servo control system, it delivers rapid positioning and stable conveyance, supporting dynamic load adjustment and seamless switching across multiple application scenarios. Manufactured from wear-resistant composite materials with anti-slip surface treatment technology, it significantly extends the service life of pallets and enhances operational safety. Equipped with built-in intelligent sensor modules, it enables real-time monitoring of conveying conditions and linkage with the central control system to guarantee efficient production and precise coordinated operation.
Product Overview
The WP2 pallet is engineered for diversified conveying systems and compatible with various conveying media including belt drives, toothed belts, and plastic flat-top chains, widely deployed in industrial automated production lines. Featuring a modular structural design and high-precision servo control system, it delivers rapid positioning and stable conveyance, supporting dynamic load adjustment and seamless switching across multiple application scenarios. Manufactured from wear-resistant composite materials with anti-slip surface treatment technology, it significantly extends the service life of pallets and enhances operational safety. Equipped with built-in intelligent sensor modules, it enables real-time monitoring of conveying conditions and linkage with the central control system to guarantee efficient production and precise coordinated operation.
Modular Integration
Configured to match the production-line layout and process flow.
Configured to match the production-line layout and process flow.
Stable Conveying
Designed for consistent material transfer in industrial automation.
Designed for consistent material transfer in industrial automation.
Application Flexibility
Dimensions and interfaces can be adapted to project requirements.
Dimensions and interfaces can be adapted to project requirements.
Service Support
Technical communication is available from selection through delivery.
Technical communication is available from selection through delivery.
Key Features
Conveying Medium
Belt, Toothed Belt, Accumulation Roller Chain
Dimension
The pallet can be selected for standard pallet ranging from 160x160mm - 640x640mm or non standard pallet with sizes ranging from 160x160mm - 640x640mm according to request. If necessary, more than one workpiece can be put on one pallet.
Pallet application environment
ESD, applicable for area sensitive to static
Automation Integration
The unit can be coordinated with sensors, controls and adjacent conveying equipment.
Applications
- ✓Automated assembly lines
- ✓Electronics and component production
- ✓Automotive parts handling
- ✓Inspection and test stations
- ✓Buffering and workstation transfer
- ✓Packaging-line integration
Complete Technical Details
All 4 unique parameters supplied for this product are listed below.
| Product Name | WP2 Conveying Pallet |
|---|---|
| Conveying Medium | Belt, Toothed Belt, Accumulation Roller Chain |
| Dimension | The pallet can be selected for standard pallet ranging from 160x160mm - 640x640mm or non standard pallet with sizes ranging from 160x160mm - 640x640mm according to request. If necessary, more than one workpiece can be put on one pallet. |
| Pallet application environment | ESD, applicable for area sensitive to static |
WP2 Selection & Engineering Data
This section contains only the engineering information that is present in the supplied TXT source and is not already stated in the Word specification.
Component Structure
Frame module, locating pin bushing, connectors and load-bearing plate.
Working Principle
The pallet carries the workpiece between processing stations. At a workstation, a stopper holds the pallet while the conveying medium continues to run.
Ordering Reference
Example: WP2-BWT160-LWT240-A, indicating a WP2 pallet, 160 mm width, 240 mm length and Type A aluminum-alloy load plate with locating-pin bushings.
Total Mass Estimation
Permissible pallet and workpiece mass: mG = LWT x f or mG = BWT x f. Here mG is pallet plus workpiece mass in kg, LWT/BWT is the contact length in cm, and f is the conveying-medium capacity in kg/cm.
Center of Gravity
Place the load near the pallet center. The recommended center-of-gravity height is no more than half BWT. Select a larger pallet for heavy or unevenly distributed workpieces.
Stopper Position
For WP2 pallets, the stopper acts at the front-left or rear-right side relative to the conveying direction.
Standard Configuration Matrix
| BWT (mm) | LWT (mm) | Plate T (mm) | Flatness P (mm) | Plate Material | Pallet Weight (kg) | Max. Uniform Load (kg) |
|---|---|---|---|---|---|---|
| 160 | 160 | 5 | 0.3 | Aluminum alloy | 0.77 | 16 |
| 160 | 240 | 5 | 0.3 | Aluminum alloy | 1.02 | 16 |
| 160 | 320 | 5 | 0.3 | Aluminum alloy | 1.27 | 16 |
| 240 | 240 | 5 | 0.3 | Aluminum alloy | 1.36 | 24 |
| 240 | 320 | 5 | 0.5 | Aluminum alloy | 1.70 | 24 |
| 240 | 400 | 5 | 0.6 | Aluminum alloy | 2.03 | 24 |
| 240 | 400 | 8 | 0.6 | Aluminum alloy | 2.77 | 24 |
| 240 | 480 | 5 | 0.6 | Aluminum alloy | 2.49 | 24 |
| 240 | 480 | 8 | 0.6 | Aluminum alloy | 3.38 | 24 |
| 320 | 320 | 5 | 0.5 | Aluminum alloy | 2.13 | 32 |
| 320 | 320 | 8 | 0.5 | Aluminum alloy | 2.91 | 32 |
| 320 | 400 | 5 | 0.6 | Aluminum alloy | 2.55 | 32 |
| 320 | 400 | 8 | 0.6 | Aluminum alloy | 3.55 | 32 |
| 320 | 480 | 5 | 0.6 | Aluminum alloy | 3.10 | 32 |
| 320 | 480 | 8 | 0.6 | Aluminum alloy | 4.30 | 32 |
| 320 | 480 | 12 | 0.6 | Aluminum alloy | 5.91 | 32 |
| 320 | 640 | 5 | 0.8 | Aluminum alloy | 3.97 | 32 |
| 320 | 640 | 8 | 0.8 | Aluminum alloy | 5.57 | 32 |
| 320 | 640 | 12 | 0.8 | Aluminum alloy | 7.71 | 32 |
| 400 | 400 | 5 | 0.6 | Aluminum alloy | 3.42 | 40 |
| 400 | 400 | 8 | 0.6 | Aluminum alloy | 4.66 | 40 |
| 400 | 400 | 12 | 0.6 | Aluminum alloy | 6.33 | 40 |
| 400 | 480 | 5 | 0.6 | Aluminum alloy | 4.05 | 40 |
| 400 | 480 | 8 | 0.6 | Aluminum alloy | 5.59 | 40 |
| 400 | 480 | 12 | 0.6 | Aluminum alloy | 7.55 | 40 |
| 400 | 640 | 5 | 0.8 | Aluminum alloy | 5.29 | 40 |
| 400 | 640 | 8 | 0.8 | Aluminum alloy | 7.27 | 40 |
| 400 | 640 | 12 | 0.8 | Aluminum alloy | 10.01 | 40 |
| 480 | 480 | 5 | 0.6 | Aluminum alloy | 4.76 | 48 |
| 480 | 480 | 8 | 0.6 | Aluminum alloy | 6.59 | 48 |
| 480 | 480 | 12 | 0.6 | Aluminum alloy | 9.01 | 48 |
| 480 | 640 | 5 | 0.8 | Aluminum alloy | 6.07 | 48 |
| 480 | 640 | 8 | 0.8 | Aluminum alloy | 8.44 | 48 |
| 480 | 640 | 12 | 0.8 | Aluminum alloy | 11.72 | 48 |
| 640 | 640 | 5 | 0.6 | Aluminum alloy | 7.75 | 64 |
| 640 | 640 | 8 | 0.6 | Aluminum alloy | 10.94 | 64 |
| 640 | 640 | 12 | 0.6 | Aluminum alloy | 15.32 | 64 |
Customization Options
Mechanical Configuration
Length, width, working height, conveying route, frame design and transfer interfaces.
Conveying & Drive
Conveying media, drive position, operating speed and load configuration based on the application.
Controls & Identification
Sensors, PLC interfaces, electrical standards, labels, logo and project documentation are available.
Packaging & Shipping
- Surface and moving parts protected before packing.
- Modules secured for loading and long-distance transportation.
- Export wooden cases or reinforced bases available upon request.
- Shipping marks and packing documents confirmed before dispatch.
Manufacturing & Quality Control
- Incoming component and material checks.
- Dimensional and assembly inspection.
- Drive, sensor and functional testing before delivery.
- Final appearance, accessories and packing-list verification.
Frequently Asked Questions
What applications is the WP2 Pallet designed for?
It is intended for pallet conveying system projects and related industrial automation. The final configuration is matched to the actual material, route and workstation requirements.
Can the dimensions be customized?
Yes. Length, width, height, interfaces and installation details can be configured after the line layout is confirmed.
What load and speed can be supplied?
Available reference information includes: Product Name: WP2 Conveying Pallet; Conveying Medium: Belt, Toothed Belt, Accumulation Roller Chain. Contact us for a selection based on the actual payload and operating cycle.
Can it connect with existing equipment?
Yes. Please provide the upstream and downstream equipment drawings, transfer height, controls and required interfaces.
Are sensors and control components available?
Sensor brackets, detection points, motors, drives and control interfaces can be specified according to the automation plan.
Which materials and finishes are available?
Material and surface-finish options depend on load, environment, cleanliness and electrostatic-control requirements.
What information is required for a quotation?
Please send the product dimensions, weight, throughput, route, line height, available space, power standard and layout drawing.
How is the equipment packed and shipped?
Packing is selected according to equipment size and destination. Protective wrapping, reinforced bases or export wooden cases are available upon request.
